ECG Challenge: Wheezing With a Rapid Heartbeat

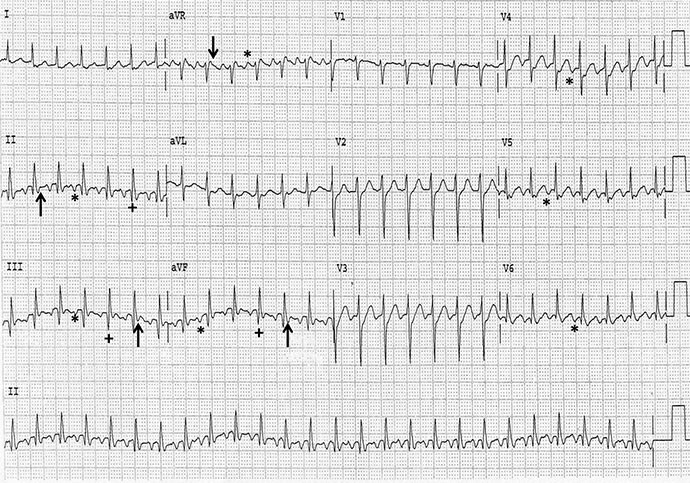

The correct diagnosis is atrial flutter with 2:1 atrioventricular (AV) block (Figure 2).

Figure 2. Courtesy of Philip J. Podrid, MD.

Discussion

The rhythm is regular at a rate of 150 beats/min. The QRS complex is narrow (0.08 sec) with a normal axis between 0° and +90° (positive QRS complex in leads I and aVF). The QRS complex morphology is normal except for a significant Q wave in leads II, III, and aVF (+), consistent with an old inferior wall myocardial infarction. The QT/QTc intervals are normal (280/440 msec).

An atrial wave occurs before each QRS complex, particularly in leads II, III, aVF, and V4-V6 (*). The wave is negative in these leads and is positive in lead aVR. This is termed a long RP tachycardia. Etiologies for a long RP tachycardia include sinus tachycardia, which is not the case here because the P waves are negative in leads II, aVF, and V4-V6) which leaves:

Atrial tachycardia
Ectopic junctional tachycardia
Atrial flutter with 2:1 AV block
Atypical AV nodal tachycardia (fast-slow)
AV re-entrant tachycardia

A second atrial waveform is superimposed at the end of the QRS complex (↑), resembling an S wave in leads II, III, aVF, and V5-V6 and an R' in aVR (↓). The interval between these two atrial waveforms is regular with a rate of 300 beats/min. Therefore, the rhythm is atrial flutter with 2:1 AV block or AV conduction.
