ECG Challenge: Uncontrolled COPD or Something Else?

Philip J. Podrid, MD

Disclosures

June 27, 2022

The correct diagnosis is atrial flutter with variable block (Figure 2).

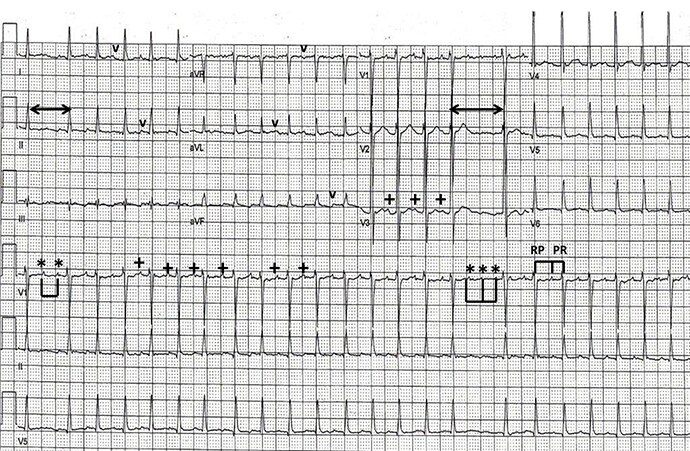

Figure 2. Courtesy of Philip J. Podrid, MD.

Discussion

The rhythm is regular at a rate of 150 beats/min; however, there are two long RR intervals (↔). The QRS complex is narrow (0.08 sec) and it has a normal morphology and normal axis between 0° and 90° (positive QRS complex in leads I and aVF).

The QT/QTc intervals are slightly prolonged (300/470 msec). There is nonspecific T-wave flattening. Evidence of atrial activity (+) is best seen in leads V1 and V3 although atrial waveforms are also apparent in leads I, II, avR, and aVF (v). The RP interval (0.28 sec) is longer than the PR interval (0.18 sec). This is considered a long RP tachycardia. Etiologies for a long RP tachycardia include:

  • Sinus tachycardia

  • Atrial tachycardia

  • Atypical atrioventricular nodal reentrant tachycardia; ie, fast-slow

  • Ectopic junctional tachycardia

  • Atrioventricular reentrant tachycardia

  • Atrial flutter with 2:1 block

Of note, evidence of atrial activity (*) appears during the two long RR intervals, and the PP interval is constant (⊔) with a rate of 300 beats/min. The only regular supraventricular rhythm with an atrial rate > 260 beats/min is atrial flutter. Therefore, the underlying rhythm is atrial flutter with primarily 2:1 atrioventricular (AV) conduction. The long RR intervals are the result of a higher degree of AV block (ie, 3:1 and 4:1).
